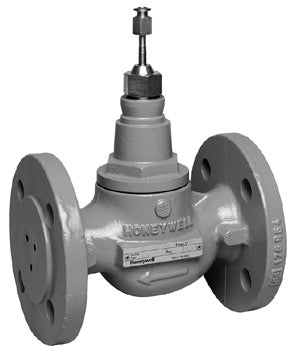

2 Port Plant Valve - 2 Port 20mm Stroke PN16 Flanged 15mm Kvs 0.63

by Energy Controls Online
SKU V5328A1153
£419.99 - £419.99
£419.99
£419.99 - £419.99
£419.99

Plant Valve - 2 Port 20mm Stroke PN16 Flanged 15mm Kvs 0.63 - Datasheet en0b0703



v5328age23
For heating and air conditioning in closed circuit systems; hot/cold water quality VDI2035.
Valve series V5328A
Valve type 2-way
Medium type steam (water)
Materials body cast iron GG25, trim stainless steel
Action to open stem up
Pressure rating PN16
Port connection flanges ISO7005
Flow char. mod.equal%
Additional description Models DN15..50 approved according DIN EN 14597 (up to 130 oC), with motors ML6425A, ML7425A.
applcertmarkdinge23
20 mm
DN size Kvs value Close off pressure with 600N motor Close off pressure with 1800N motor Stroke Media temp. Type
mm   kPa kPa mm oC
15 0,25 1600 — 20 2 ... 170 V5328A1138  PDF
15 0,4 1600 — 20 2 ... 170 V5328A1146  PDF
15 0,63 1600 — 20 2 ... 170 V5328A1153  PDF
15 1 1600 — 20 2 ... 170 V5328A1005  PDF
15 1,6 1600 — 20 2 ... 170 V5328A1013  PDF
15 2,5 1000 1600 20 2 ... 170 V5328A1021  PDF
15 4 1000 1600 20 2 ... 170 V5328A1039  PDF
20 4 1000 1600 20 2 ... 170 V5328A1047  PDF
20 6,3 1000 1600 20 2 ... 170 V5328A1054  PDF
25 10 1000 1600 20 2 ... 170 V5328A1062  PDF
32 16 600 1600 20 2 ... 170 V5328A1070  PDF
40 25 350 1300 20 2 ... 170 V5328A1088  PDF
50 40 200 750 20 2 ... 170 V5328A1096  PDF
65 63 120 470 20 2 ... 170 V5328A1104  PDF
80 100 50 230 20 2 ... 170 V5328A1112  PDF
