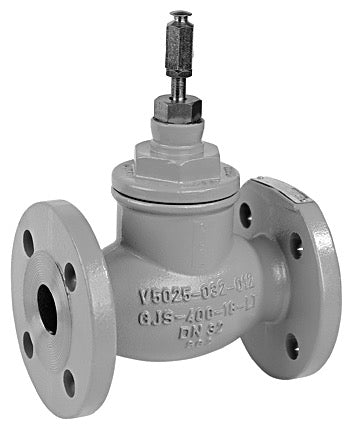

2 Port Plant Valve - 2 Port 38mm Stroke PN25 Flanged 100mm Kvs 160

by Energy Controls Online
SKU V5025A1142
£2,185.23 - £2,185.23
£2,185.23
£2,185.23 - £2,185.23
£2,185.23

Plant Valve - 2 Port 38mm Stroke PN25 Flanged 100mm Kvs 160 - Datasheet en0b0413

v5025age51
Pressure balanced control valve for closed circuit systems.
For district heating; hot or cold water (max. 50% glycol), water quality VDI2035; or steam.
Valve series V5025A
Valve type 2-way press. bal.
Medium type steam (water)
Materials body nodular iron GGG40.3, trim stainless steel
Action to open stem up
Media temp. 2 ... 200 oC
Pressure rating PN25
Port connection flanges ISO7005
Flow char. mod.equal%
Additional description Models DN15..80 approved according DIN EN 14597 (up to 130 oC), with motors ML6425A, ML7425A.
applcertmarkdinge23
38 mm
DN size Kvs value Close off pressure with 600N motor Close off pressure with 1800N motor Stroke Type
mm   kPa kPa mm
100 160 — 2500 38 V5025A1142  PDF
125 250 — 2500 38 V5025A1159  PDF
150 360 — 2500 38 V5025A1167  PDF
