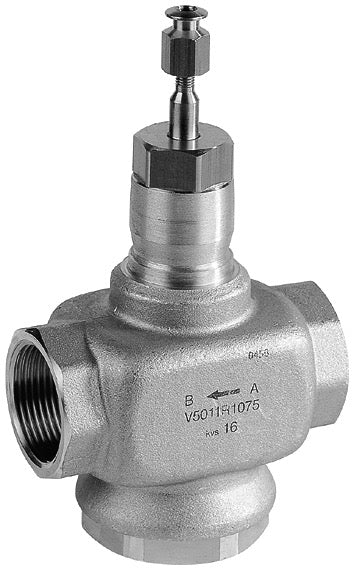

2 Port Plant Valve - 2 Port 20mm Stroke PN16 Int Thread SS Plug 50mm Kvs 40
SKU V5011S1096
Original price
£471.65
-
Original price
£471.65
Original price
£471.65
£471.65
-
£471.65
Current price
£471.65
Plant Valve - 2 Port 20mm Stroke PN16 Int Thread SS Plug 50mm Kvs 40 - Datasheet en0b0442
 |
|
| Valve series | V5011R/S |
| Valve type | 2-way |
| Materials | body brass, stem stainless steel; plug brass or stainless steel |
| Action to open | stem up |
| Stroke | 20 mm |
| Media temp. | 2 ... 170 oC |
| Pressure rating | PN16 |
| Port connection | internal threads ISO228 |
| Flow char. | mod.equal% |
| Medium type | DN size | Kvs value | Close off pressure with 600N motor | Close off pressure with 1800N motor | Type | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | kPa | kPa | |||||||||||||||||
| steam (water) | 15 | 0,63 | 1600 | — |
V5011S1005
|
||||||||||||||
| steam (water) | 15 | 1 | 1600 | — |
V5011S1013
|
||||||||||||||
| steam (water) | 15 | 1,6 | 1600 | — |
V5011S1021
|
||||||||||||||
| steam (water) | 15 | 2,5 | 1600 | — |
V5011S1039
|
||||||||||||||
| steam (water) | 15 | 4 | 1600 | — |
V5011S1047
|
||||||||||||||
| steam (water) | 20 | 6,3 | 1600 | — |
V5011S1054
|
||||||||||||||
| steam (water) | 25 | 10 | 1000 | 1600 |
V5011S1062
|
||||||||||||||
| steam (water) | 32 | 16 | 700 | 1600 |
V5011S1070
|
||||||||||||||
| steam (water) | 40 | 25 | 460 | 1500 |
V5011S1088
|
||||||||||||||
| steam (water) | 50 | 40 | 260 | 850 |
V5011S1096
|
||||||||||||||
