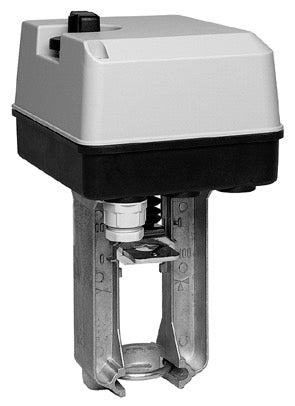

Plant Valve Actuator - 20mm Stroke 60 Secs 24Vac R/L Man Op

by Energy Controls Online
SKU ML6420A3007
£255.50 - £255.50
£255.50
£255.50 - £255.50
£255.50

Plant Valve Actuator - 20mm Stroke 60 Secs 24Vac R/L Man Op - Datasheet en0b0351

Actuator 3-pt, 20 mm 600 N, ML6420/ML6425

ml6420age02
Electrical actuator floating control, for valve series: V5011, V5013, V5016A, V5025, V5049, V5050, V5328, V5329.
Protection class IP54
Position indication scale plate
Position feedback optional
End switches optional
Stem force 600 N
Control input signal 3-pt
Stroke 20 mm
Additional description For ML6425-models: approved according DIN EN 14597 (up to 130 oC) in combination with V5016A/V5025A/V5328A/V5049A.
applcertmarkdinge23
20 mm; 600 N
ml6420age02
ML6420A
Supply voltage Power loss action Manual operation Runtime Spring return Type
      min
24 Vac — • 1,0 — ML6420A3007  PDF
24 Vac — — 1,0 — ML6420A3072  PDF
