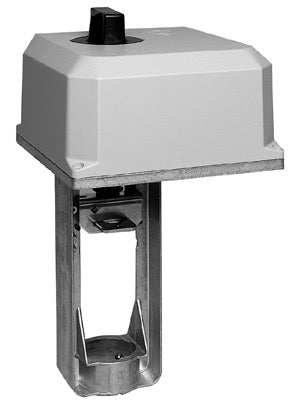

Plant Valve Actuator - 38mm Stroke 210 Secs 24Vac R/L Man Op
SKU ML6421B3004
Original price
£493.25
-
Original price
£493.25
Original price
£493.25
£493.25
-
£493.25
Current price
£493.25
Plant Valve Actuator - 38mm Stroke 210 Secs 24Vac R/L Man Op - Datasheet en0b0414
Actuator 3-pt, 20/38 mm 1800 N, ML6421
 |
|
| Protection class | IP54 |
| Position indication | scale plate on the yoke |
| End switches | optional |
| Stem force | 1800 N |
| Control input signal | 3-pt |
| Manual operation | yes |
| Supply voltage | Stroke | Runtime | Position feedback | Type | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | min | ||||||||||||||||||
| 24 Vac | 38 | 3,5 | optional | ML6421B3004
|
|||||||||||||||
| 230 Vac | 38 | 3,5 | — | ML6421B3012
|
|||||||||||||||
