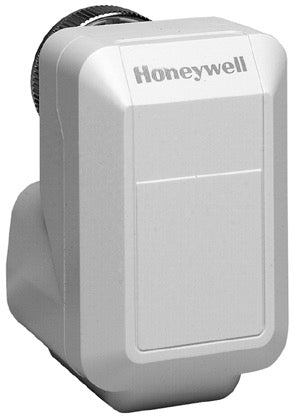

Plant Valve Actuator - 6.5mm Stroke 150 Secs 230Vac R/L Man Op
SKU M6410L2031
Original price
£144.87
-
Original price
£144.87
Original price
£144.87
£144.87
-
£144.87
Current price
£144.87
Plant Valve Actuator - 6.5mm Stroke 150 Secs 230Vac R/L Man Op - Datasheet en0b0096
Actuator 3-pt for zone control, 6,5 mm 180/300 N, M6410/M7410
 |
|
| Protection class | IP43/IP42 |
| Position indication | with red indicator |
| End switch function/capacity | SPDT; capacity 1 A inductive, 5 A resistive |
| Control input signal | 3-pt |
| Stroke | 6,5 mm |
| Runtime | 150 s |
| Additional description | For M7410-models, the valve cap can be used for manual adjustment. For models with 2 end switches, the 2nd switch is adjustable. |
|
||||||||||||||||||||
| Stem force | Supply voltage | Manual operation | End switches | Cable length | Type | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| N | m | |||||||||||||||||||
| 300 | 24 Vac | • | — | 1,5 | M6410C2031
|
|||||||||||||||
| 300 | 24 Vac | • | 2 | 1,5 | M6410C4037
|
|||||||||||||||
| 300 | 230 Vac | • | — | 1,5 | M6410L2031
|
|||||||||||||||
| 300 | 230 Vac | • | 2 | 1,5 | M6410L4037
|
|||||||||||||||
