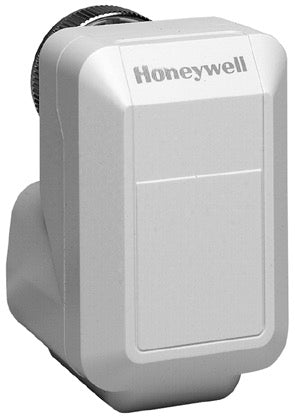

Plant Valve Actuator - 6.5mm Stroke 150 Secs 24Vac Proportional
SKU M7410E1028
Original price
£168.11
-
Original price
£168.11
Original price
£168.11
£168.11
-
£168.11
Current price
£168.11
Plant Valve Actuator - 6.5mm Stroke 150 Secs 24Vac Proportional - Datasheet en0b0097
Actuator 0/2..10V for zone control, 6,5 mm 180/300 N, M7410E
 |
|
| Protection class | IP42 |
| Position indication | with red indicator |
| End switch function/capacity | SPDT, capacity 1A inductive, 5A resistive |
| Supply voltage | 24 Vac |
| Control input signal | 0/2..10V= |
| Stroke | 6,5 mm |
| Runtime | 150 s |
| Cable length | 1,5 m |
| Additional description | The control action is reversable. For M7410E1..-models, the valve cap can be used for manual adjustment. For models with 2 end switches, the 2nd switch is adjustable. |
|
||||||||||||||||||||
| Stem force | Manual operation | End switches | Type | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| N | ||||||||||||||||||||
| 300 | — | — | M7410E1028
|
|||||||||||||||||
| 300 | • | — | M7410E2034
|
|||||||||||||||||
| 300 | • | 2 | M7410E4030
|
|||||||||||||||||
