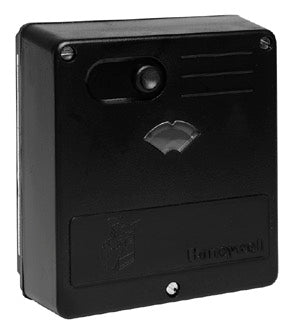

Rotary Actuator 30NM 230VAC Floating

Electrical actuator for valve series VBG (DN40..DN50)
Protection class: IP54
Position indication: reversable scale plate
Manual operation by declutch of gear.
Angle of rotation: 90o
Manual operation: yes

Floating control
Torque: 30Nm
Supply voltage: 230 Vac
Control input signal: 3-pt
Runtime: 2.3min
Position feedback: optional
End switches: optional
