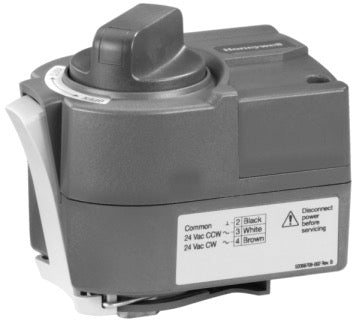

Rotary Actuator 3NM 24VAC Floating 1.5M

Electrical actuator for VBG control ball valves, DN15-DN32.
Actuator can easily be clicked on valve - no tool required.
Protection class: IP40
Position indication: scale plate
Torque: 3Nm
Angle of rotation: 90o
Manual operation: yes
Cable length: 1.5m

Floating control
Supply voltage: 24 Vac
Control input signal: 2/3-pt
Runtime: 108s

CAD Drawings DXF DWG STEP IGES SAT, attributed

Specification sheet (English)

Installation/mounting instruction (Multilingual)
