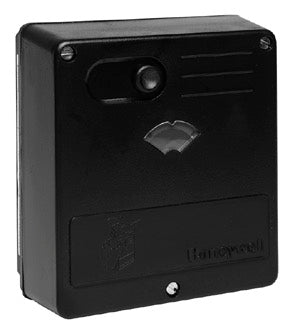

Rotary Actuator 40NM 230VAC Floating

Electrical actuator for valve series VBG (DN40..DN50)
Protection class: IP54
Position indication: reversible scale plate
Manual operation by declutch of gear.
Angle of rotation: 90o
Manual operation: yes

Floating control
Torque: 40Nm
Supply voltage: 230 Vac
Control input signal: 3-pt
Runtime: 3.5min
Position feedback: no
End switches: optional

CAD Drawings DXF DWG STEP IGES SAT, attributed

Specification sheet (English)

Installation/mounting instruction (Multilingual)
