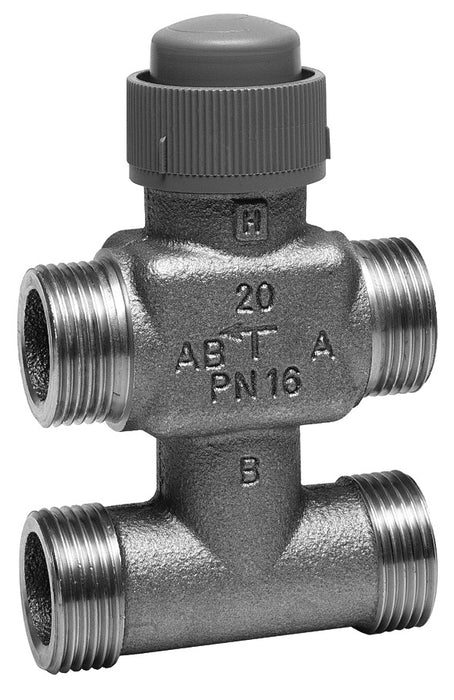

Zone Valve - 4 Port 2.5mm Stroke PN16 Flat End 20mm Kvs 2.5

by Energy Controls Online
SKU V5833C4011
£45.38 - £45.38
£45.38
£45.38 - £45.38
£45.38

Zone Valve - 4 Port 2.5mm Stroke PN16 Flat End 20mm Kvs 2.5 - Datasheet en0b0308



v5833c-ge51
For individual room control, fan coil units and small re-heaters/re-coolers; hot water or cold water (max. 50% glycol), water quality VDI2035.
Valve series V5833C
Valve type 3-way mixing, bypass
Medium type water
Materials body brass, stem stainless steel, plug brass
Action to open stem down
Media temp. 2 ... 120 oC
Pressure rating PN16
Port connection ext. thread flat sealing
Additional description Valves are supplied with adjustment cap (not for on/off types). The valve capacity for linear ports is one stage smaller than for equal percentage ports.
2,5 mm
DN size Connection diameter Kvs value Close off pressure with 90N motor Close off pressure with 180N motor Stroke Flow char. Type
mm inch   kPa kPa mm
15 G1/2 1,6 150 — 2,5 on/off V5833C4003  PDF
20 G3/4 2,5 50 — 2,5 on/off V5833C4011  PDF
