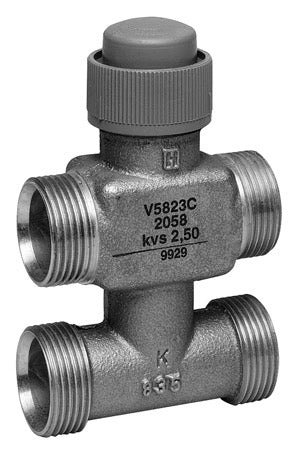

Zone Valve - 4 Port 6.5mm Stroke PN16 Connex 20mm Kvs 2.5

by Energy Controls Online
SKU V5823C2157
£89.03 - £89.03
£89.03
£89.03 - £89.03
£89.03

Zone Valve - 4 Port 6.5mm Stroke PN16 Connex 20mm Kvs 2.5 - Datasheet en0b0408



v5823cge23
For individual room control, fan coil units and small re-heaters/re-coolers; hot water or cold water (max. 50% glycol), water quality VDI2035.
Valve series V5823C
Valve type 3-way mixing, bypass
Medium type water
Materials body brass, stem stainless steel, plug brass
Action to open stem down
Media temp. 2 ... 120 oC
Pressure rating PN16
Port connection ext. thread con. sealing
Additional description Valves are supplied with adjustment cap (not for on/off types). If the main-port (A-AB) is equal percentage, the B-AB port is linear. The valve capacity of B-AB is one stage smaller.
6,5 mm
DN size Connection diameter Kvs value Close off pressure with 90N motor Close off pressure with 180N motor Stroke Flow char. Type
mm inch   kPa kPa mm
15 G1/2 0,25 500 800 6,5 mod.equal% V5823C2009  PDF
15 G1/2 0,4 500 800 6,5 mod.equal% V5823C2017  PDF
15 G1/2 0,63 500 800 6,5 mod.equal% V5823C2025  PDF
15 G1/2 1 150 250 6,5 mod.equal% V5823C2033  PDF
15 G1/2 1,6 150 250 6,5 mod.equal% V5823C2041  PDF
20 1 1/8" x 14 2,5 — 240 6,5 mod.equal% V5823C2157  PDF
20 1 1/8" x 14 2,5 50 100 6,5 mod.equal% V5823C2058  PDF
20 1 1/8" x 14 4 — 240 6,5 mod.equal% V5823C2165  PDF
20 1 1/8" x 14 4 50 100 6,5 mod.equal% V5823C2066  PDF
