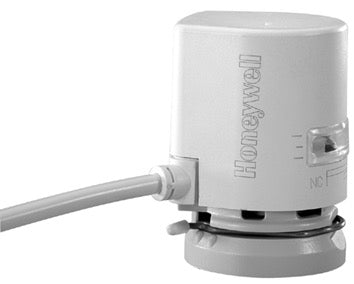

Zone Valve Actuator - 6.5mm Stroke SD 300 Secs 24Vac Thermic

by Energy Controls Online
SKU MT8-024-NC
£40.16 - £40.16
£40.16
£40.16 - £40.16
£40.16

Zone Valve Actuator - 6.5mm Stroke SD 300 Secs 24Vac Thermic - Datasheet en0b0490



Actuator thermoelectric for zone control 2,5/6,5 mm 90 N, Smart-T

mt4ge51
Electrical actuator on/off control, and PWM control.
Protection class IP44
Position indication with red indicator
End switch function/capacity SPST, capacity 5(3) A; contact closes at power on
Stem force 90 N
Control input signal 2-pt
Additional description Actuator supplied with mounting clip (MT-CLIP) and M30 x 1,5 adapter (MT-ADAPT-HW).
• Other adapters on request.
• Other cable length, or special connectors, on request.
• Effective stroke for valves 2,5/6,5 mm; maximum stroke 4/8 mm.
• Fits to closing dimension 11,5 +/- 0,3 mm

Supply voltage Power loss action Stroke Runtime Initial current Cable length Type
    mm min A m
24 Vac/dc stem retracts 6,5 6 0,2 1 MT8-024-NO  PDF
24 Vac/dc stem retracts 6,5 6 0,2 2,5 MT8-024-NO-2.5M  PDF
24 Vac/dc stem extends 6,5 6 0,2 1 MT8-024-NC  PDF
24 Vac/dc stem extends 6,5 6 0,2 2,5 MT8-024-NC-2.5M  PDF
230 Vac stem retracts 6,5 6,5 0,4 1 MT8-230-NO  PDF
230 Vac stem retracts 6,5 6,5 0,4 2,5 MT8-230-NO-2.5M  PDF
230 Vac stem extends 6,5 6,5 0,4 1 MT8-230-NC  PDF
230 Vac stem extends 6,5 6,5 0,4 2,5 MT8-230-NC-2.5M  PDF
