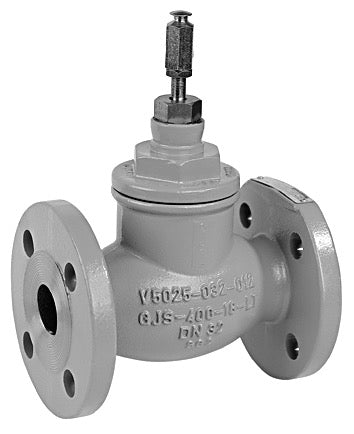

2 Port Plant Valve - 2 Port 20mm Stroke PN25 Flanged 15mm Kvs 2.5

SKU V5025A1050
Original price £532.10 - Original price £532.10
Original price
£532.10
£532.10 - £532.10
Current price £532.10

Plant Valve - 2 Port 20mm Stroke PN25 Flanged 15mm Kvs 2.5 - Datasheet en0b0413



v5025age51
Pressure balanced control valve for closed circuit systems.
For district heating; hot or cold water (max. 50% glycol), water quality VDI2035; or steam.
Valve series V5025A
Valve type 2-way press. bal.
Medium type steam (water)
Materials body nodular iron GGG40.3, trim stainless steel
Action to open stem up
Media temp. 2 ... 200 oC
Pressure rating PN25
Port connection flanges ISO7005
Flow char. mod.equal%
Additional description Models DN15..80 approved according DIN EN 14597 (up to 130 oC), with motors ML6425A, ML7425A.
applcertmarkdinge23
20 mm
DN size Kvs value Close off pressure with 600N motor Close off pressure with 1800N motor Stroke Type
mm   kPa kPa mm
15 0,4 2500 20 V5025A1019  PDF
15 0,63 2500 20 V5025A1027  PDF
15 1 2500 20 V5025A1035  PDF
15 1,6 2500 20 V5025A1043  PDF
15 2,5 2500 20 V5025A1050  PDF
15 4 2500 20 V5025A1068  PDF
20 6,3 2500 20 V5025A1076  PDF
25 10 2500 20 V5025A1084  PDF
32 16 2500 20 V5025A1092  PDF
40 25 2500 20 V5025A1100  PDF
50 40 2500 20 V5025A1118  PDF
65 63 2500 20 V5025A1126  PDF
80 100 2500 20 V5025A1134  PDF
