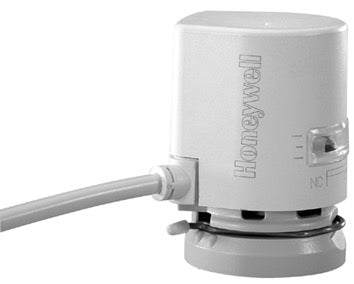

Zone Valve Actuator - 4mm Stroke SU 180 Secs 24Vac Thermic 2.5 m Cable

SKU MT4-024-NO-2.5M
Original price £41.81 - Original price £41.81
Original price
£41.81
£41.81 - £41.81
Current price £41.81

Zone Valve Actuator - 4mm Stroke SU 180 Secs 24Vac Thermic 2.5 m Cable - Datasheet en0b0490



Actuator thermoelectric for zone control 2,5/6,5 mm 90 N, Smart-T

mt4ge51
Electrical actuator on/off control, and PWM control.
Protection class IP44
Position indication with red indicator
End switch function/capacity SPST, capacity 5(3) A; contact closes at power on
Stem force 90 N
Control input signal 2-pt
Additional description Actuator supplied with mounting clip (MT-CLIP) and M30 x 1,5 adapter (MT-ADAPT-HW).
Other adapters on request.
Other cable length, or special connectors, on request.
Effective stroke for valves 2,5/6,5 mm; maximum stroke 4/8 mm.
Fits to closing dimension 11,5 +/- 0,3 mm
2,5 mm; 90 N
Supply voltage Power loss action Stroke Runtime Initial current Cable length Type
    mm min A m

24 Vac/dc stem retracts 2,5 4 0,2 2,5 MT4-024-NO-2.5M  PDF
24 Vac/dc stem extends 2,5 4 0,2 1 MT4-024-NC  PDF
24 Vac/dc stem extends 2,5 4 0,2 2,5 MT4-024-NC-2.5M  PDF
230 Vac stem retracts 2,5 4 0,4 1 MT4-230-NO  PDF
230 Vac stem retracts 2,5 4 0,4 2,5 MT4-230-NO-2.5M  PDF
230 Vac stem extends 2,5 4 0,4 1 MT4-230-NC  PDF
230 Vac stem extends 2,5 4 0,4 2,5 MT4-230-NC-2.5M  PDF
