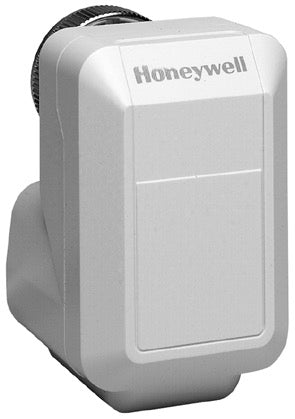

Zone Valve Actuator - 6.5mm Stroke 150 Secs 24Vac R/L
SKU M7410C1007
Original price
£82.20
-
Original price
£82.20
Original price
£82.20
£82.20
-
£82.20
Current price
£82.20
Zone Valve Actuator - 6.5mm Stroke 150 Secs 24Vac R/L - Datasheet en0b0096
Actuator 3-pt for zone control, 6,5 mm 180/300 N, M6410/M7410
|
Protection class | IP43/IP42 |
Position indication | with red indicator |
End switch function/capacity | SPDT; capacity 1 A inductive, 5 A resistive |
Control input signal | 3-pt |
Stroke | 6,5 mm |
Runtime | 150 s |
Additional description | For M7410-models, the valve cap can be used for manual adjustment. For models with 2 end switches, the 2nd switch is adjustable. |
