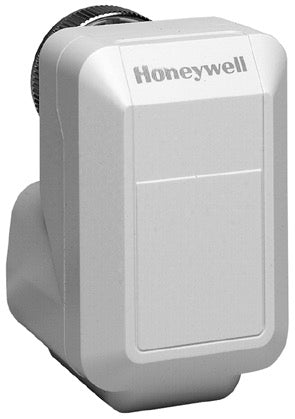

Zone Valve Actuator - 6.5mm Stroke 150 Secs 24Vac R/L 10m Cable

SKU M7410C1007-10M
Original price £121.65 - Original price £121.65
Original price
£121.65
£121.65 - £121.65
Current price £121.65

Zone Valve Actuator - 6.5mm Stroke 150 Secs 24Vac R/L 10m Cable - Datasheet en0b0096



Actuator 3-pt for zone control, 6,5 mm 180/300 N, M6410/M7410

m7410-ge51
Electrical actuator floating control.
Protection class IP43/IP42
Position indication with red indicator
End switch function/capacity SPDT; capacity 1 A inductive, 5 A resistive
Control input signal 3-pt
Stroke 6,5 mm
Runtime 150 s
Additional description For M7410-models, the valve cap can be used for manual adjustment. For models with 2 end switches, the 2nd switch is adjustable.
6,5 mm; 180 N; for valve series: V5078B, V5822A, V5823A/C, V5832A, V5833A/C, VSM
Stem force Supply voltage Manual operation End switches Cable length Type
N       m
180 24 Vac 1,5 M7410C1007  PDF
180 24 Vac 10 M7410C1007-10M  PDF
